  Currently, the number of CATV network users reaches a hundred million. The network exists in single-way mode mainly. For reducing the maintenance management cost and facing serious competition, how to make the best use of the exiting HFC basic network to develop two-way transmission service becomes the major subject of two-way reconstruction for carrier.

Details

The radio film and television application

Currently, the number of CATV network users reaches a hundred million. The network exists in single-way mode mainly. For reducing the maintenance management cost and facing serious competition, how to make the best use of the exiting HFC basic network to develop two-way transmission service becomes the major subject of two-way reconstruction for carrier.

The EPON network structure of point-to-multipoint is similar to the radio film and television network, and native broadcast mechanism of EPON is suitable to transmit video service. GWD provides two-way reconstruction solutions of EPON+LAN and EPON +EoC for the radio film and television network.

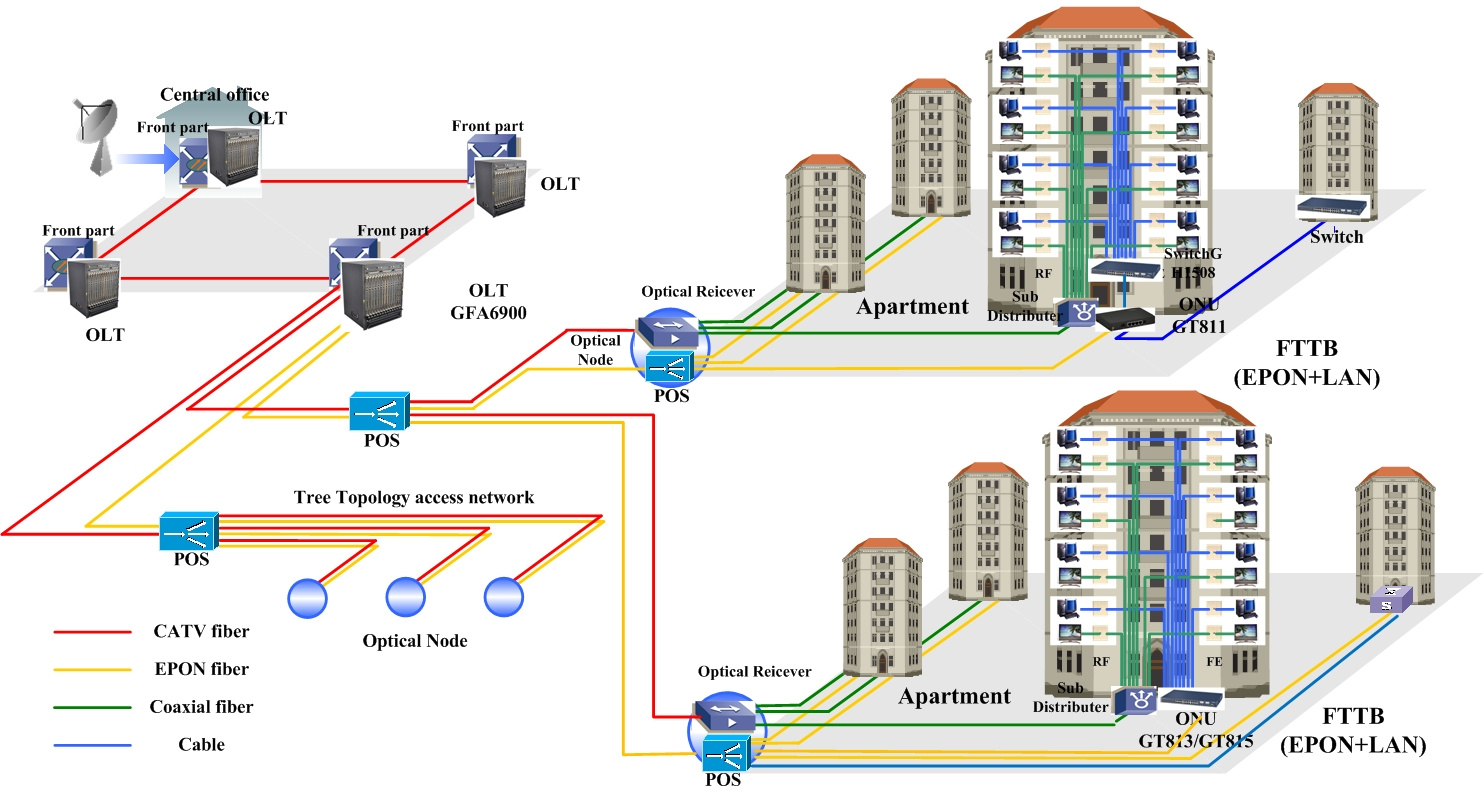

1. EPON+LAN



The solution adopts the EPON products of EasyPath series. EasyPath provides large capacity OLT GFA6900 in the central office. Passive optical split instrument should be located at the branch of the radio film and television tree network. EPON provides Ethernet service by fiber in two ways: OUN+corridor switch, or integration and exchange ONU placed in switch box of corridor. The ONU product includes GT811 of 4FE, GT812 of 8FE, GT813 of 24FE and GT815 of 16FE.

Features:

1. Flexible network deployment of EPON accords with the feature of radio film and television tree dispersing network, and realizes the broadband expansion and fiber network developing orientation gradually.

2. Huge broadband: 1G two-way broadband that can be upgraded to 10G, guarantee the broadband requirement of service development.

3. Compact network level: the feature of pure fiber, pure data and passive dispensing instrument is to simplify the network level and improve network operation

4. support integrated service access of high quality broadcast, special line and voice

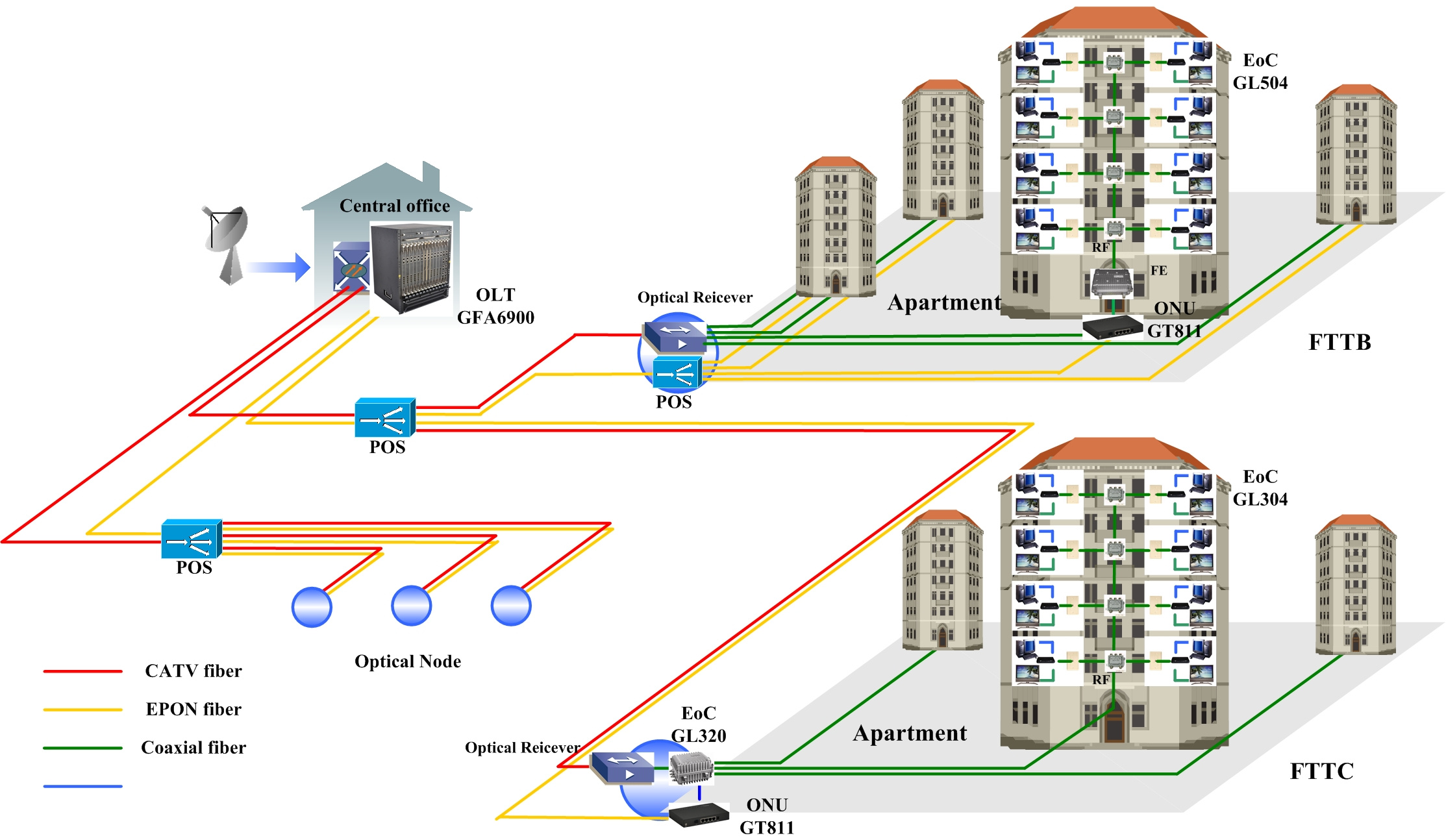

2. EPON+EoC



In the solution, the part in the metropolitan house and optical split network are the same with EPON+LAN. ONU and EoC can be located in corridor or optical node, the Ethernet signal from ONU and CATV signal are mixed by EoC, then the two kinds of signals are dispersed by EoC in user house for providing television and data service. EoC transmit data on fundamental frequency no need of power supply, and it is easy for maintenance.

Features:

1. Make the best use of original cable, dispense with new Ethernet cable, save the initial investment, suitable for the resident sub-district two-way construction.

2. Huge broadband: 1G two-way broadband that can be upgraded to 10G, guarantee the broadband requirement of service development.

3. Support mature Ethernet technology, reducing the deploying and maintenance cost, accord with future technical orientation, saving equipment investment.

4. Support compact network level, realizing end-to-end service configuration and maintenance, reduce the maintenance cost.

5. Powerful system expansibility, upgrading the broadband and user numbers on ONU conveniently.

6. Flexible network deployment of EPON accords with the feature of radio film and television tree dispersing network, and realizes the broadband expansion and fiber network developing orientation gradually.
